| Size | 1” to 24” Above on Request Available. |
|---|---|
| Class | 150# / 300# / 600# |
| MOC | ASTM A234 Gr. WPB, ASTM A403 Gr. WP304 / 304L / 316 / 316L |
| Design & Testing Std. | As Per Manufacturer Standard |

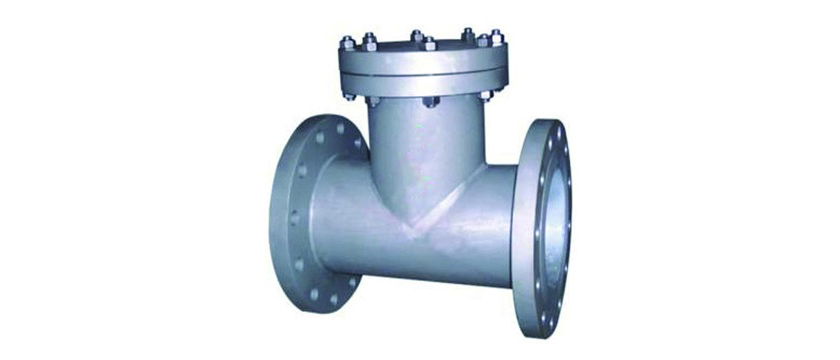

Fabricated T Type Strainer
Leading Industrial valves manufacturing company

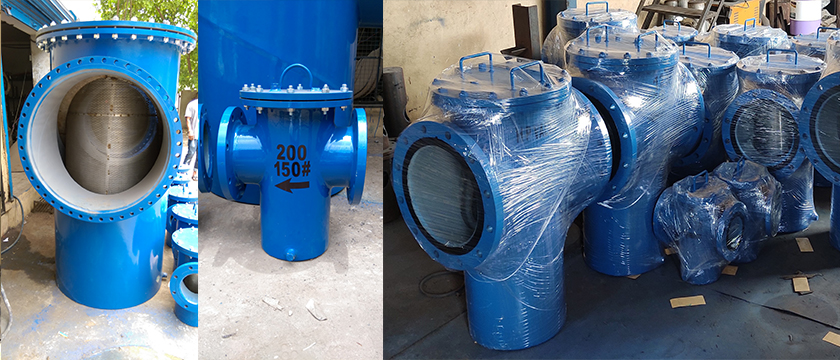

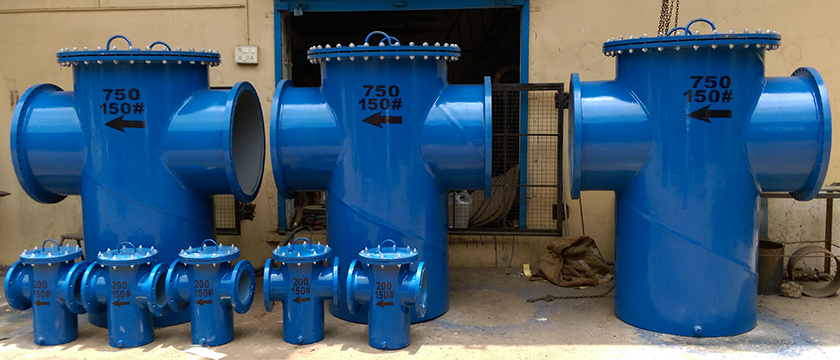

Fabricated T Type Strainer
Tee strainers is a custom fabricated compound strainer designed to remove foreign particles from pipeline. Tee Type Strainers are a low cost solution to large nominal bore straining requirements. They can be mounted into vertical or horizontal piping and can be configured for right-angled applications.
Materials of Construction
MOC for T-Strainer is Wrought steel butt welding material : ASTM A234 Gr. WPB for carbon steel and ASTM A403 Gr. WP304L-S for stainless steel. MOC for Screen is made from stainless steel SS304, SS306. C
| No. | Description | Carbon Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|---|---|---|---|---|---|---|
| 01 | Body | ASTM A234 GR.WPB |
ASTM A403 GR.WP 304 |
ASTM A403 GR.WP 304L |
ASTM A403 GR.WP 316 |
ASTM A403 GR.WP 316L |
| 02 | Body Flange | ASTM A105 | ASTM A182 F304 |
ASTM A182 F304L |
ASTM A182 F316 |
ASTM A182 F316L |
| 03 | Cover | ASTM A105 | ASTM A182 F304 |
ASTM A182 F304L |
ASTM A182 F316 |
ASTM A182 F316L |
| 04 | Element | SS 304 | SS 304 | SS 304L | SS 316 | SS 316L |
| 05 | Gasket | SS 316 SPW With GR Filler |
SS 316 SPW With GR Filler |
SS 316 SPW With GR Filler |
SS 316 SPW With GR Filler |
SS 316 SPW With GR Filler |
| 06 | Vent | ASTM A105 | ASTM A182 F304 |
ASTM A182 F304L |
ASTM A182 F316 |
ASTM A182 F316L |
| 07 | Stud & Nut | ASTM A193/194/ GR.B7/2H |
ASTM A193/194/ GR.B7/2H Zinc Plated |
ASTM A193/194/ GR.B7/2H Zinc Plated |
ASTM A193/194/ GR.B7/2H Zinc Plated |
ASTM A193/194/ GR.B7/2H Zinc Plated |
| 08 | Handle | MS | SS 304 | SS 304L | SS 316 | SS 316L |
