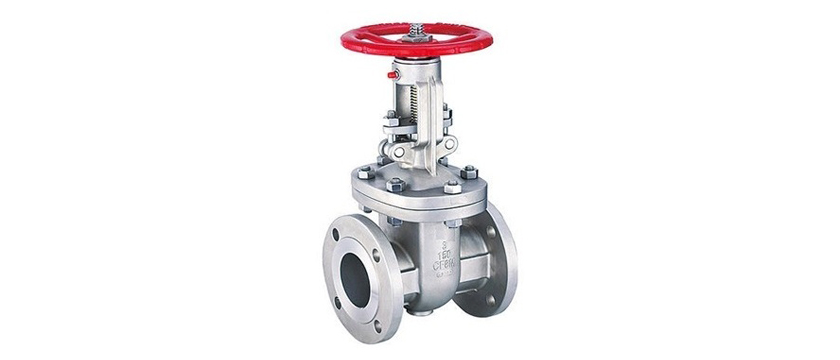

Gate Valves are often used when minimum pressure loss and a free bore is needed. When fully open, a typical gate valve has no obstruction in the flow path resulting in a very low pressure loss, and this design makes it possible to use a pipe-cleaning pig. A gate valve is a multi-turn valve meaning that the operation of the valve is done by means of a threaded stem. As the valve has to turn multiple times to go from open to closed position, the slow operation also prevents water hammer effects.
| Size | 2” (50 mm) to 12” (300 mm) |
|---|---|
| Class | 150# / 300# |
| End | Flanged End to ASME B16.5 RF / Butt Weld Ends to ASME B16.25 |
| Design / Mfg. Std. | API 600 / API 603/ BS 1414 |
| Face to face | ASME B16.10 |
| Inspection & Testing Std. | API 598 |
| *Special Material & Higher Size/Class Valves also available on request | |
