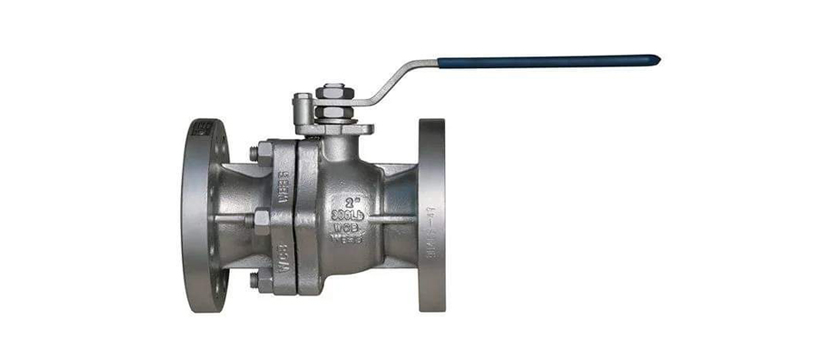

A ball valve is a device with a spherical closure unit that provides on/off control of flow.The sphere has a port, also known as a bore, through the center. When the valve is positioned such that the bore is aligned in the same direction as the pipeline, it is in open position and fluid can flow through it. When rotated 90 degrees, the bore becomes perpendicular to the flow path,meaning the valve is closed and the fluid cannot pass through
| Size | 1/2" to 2" Screwed ends / Socket weld ends 1/2" to 12" Flanged ends / Butt weld ends |
|---|---|
| Class | 150# to 1500# |
| Design / Mfg. Std. | BS 5351 / API 6D / BS-EN ISO 17292 |
| Bore / Port | Full Bore / Reduce Bore |
| Variants | 3 Piece / 2 Piece / Single Piece Ball Valve, Trunnion Mounted / Floating Ball |
| Inspection & Testing Std. | API 598, ISO 5208 | MOC | Carbon Steel / Stainless Steel or Alloy Steel |
| Operation | Manual / Pneumatic / Electrical |
